DC-Contact SO / SS
DC-Contact SO / SS
DC contacts, commonly referred to as direct current contacts, are essential components in electrical systems and devices designed to establish or interrupt the flow of electrical current in a circuit. These contacts are typically used in switches, relays, and other control devices to control the operation of electrical equipment and machinery. Unlike AC (alternating current) contacts, DC contacts are designed to handle the constant and unidirectional flow of electrical current, requiring specific construction and material considerations to ensure reliable and efficient performance.

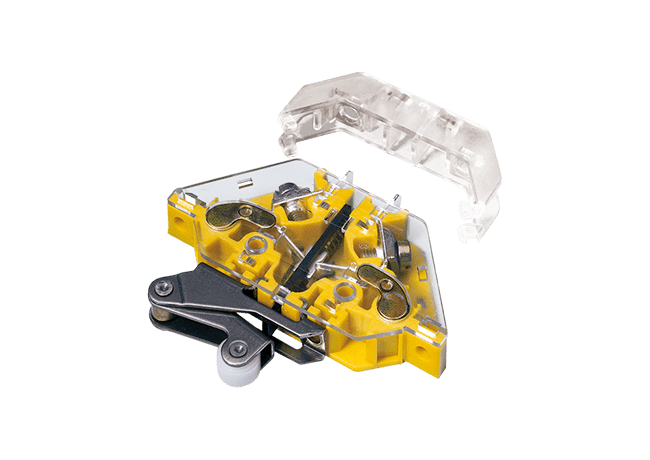

These contact blocks are suitable for installation only on non-magnetizable materials, with screws made of non-ferrous metal. The self-cleaning silver contacts are optimized for low switching frequencies and low currents/voltages. Gold-coated contacts (approximately 0.2μ) are also available, requiring less than 42 volts. The side screw connection (M3.5) accommodates a maximum of 2 conductors of up to 2.5 mm² each. The top plug-in connection (4.8 x 0.8 mm DIN 46247) offers additional versatility.
Multiple contact blocks can be stacked on top of each other and operated simultaneously, with plug-type terminals accessible only on the top unit. Shock protection to DIN VDE 0106 Part 100 can be provided for these contact blocks.
Product description
- Technical specifications may vary depending on the configuration or application.
- Technical data is subject to change without prior notice.
Technical data
- Mechanical life: 2 million operating cycles
- Electrical service Life: 50,000 operating cycles (at 2A 250V DC L/R 20 ms)
- Operating temperature: -40°C to +85°C
- Degree of protection: IP40
Switching capacity
- NC: 250V 2A, NO: 250V 1A, time tonstant: 20 ms
- NC: 125V DC 4A, NO: 125V DC 3A, time constant: 20 ms
- NC: 50V DC 6A, NO: 50V DC 6A, time constant: 20 ms
- NC: 30V DC 10A, NO: 30V DC 10A, time constant: 20 ms
- NC: 250V AC 15 6A, NO: 250V AC 15 6A
