Pedal Controller PP7
Pedal Controller PP7

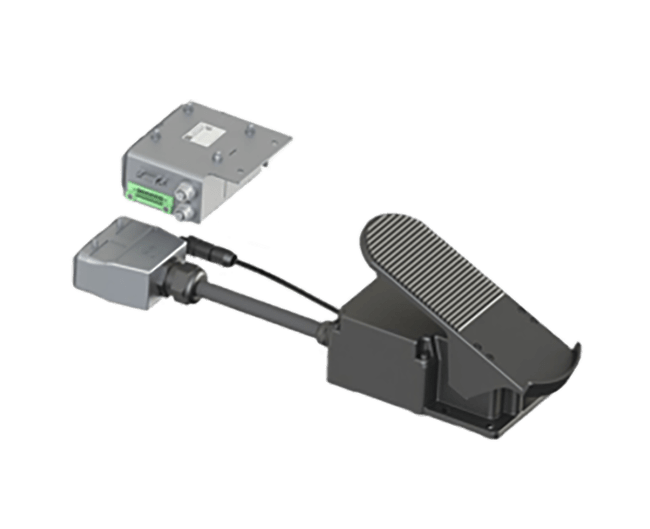

Gessmann’s Pedal Controller PP7 is purposefully engineered for utilization in railway applications. Its robust design, compliant with the relevant standards EN-60077 and EN-50155, ensures low life cycle costs and maintainability for up to 35 years. The Pedal Controller PP7 represents a cornerstone of precision and versatility in control mechanisms, offering users seamless and responsive manipulation of various functions.
Technical data
- Ambient Temperature Outside Vehicle: -40°C to +50°C (EN 50155 Class T1, T2, T3, TX)
- Nominal Supply Voltages: 24VDC with variations according to EN 50155
- Shock and Vibration: According to EN 61373
- Electromagnetic Compatibility (EMC): According to EN 50121-3-2
- Isolation and High Voltage Test: According to EN 50155
- Pollution Degree: PD 3 according to EN 60077-1 (others on demand)
- Fire and Smoke: Compliant to EN 45545 (others on demand)
- Mechanical Endurance: 10 million operating cycles
- Electrical Endurance: Minimum operating cycle class C3/A3 according to EN 60077-2
