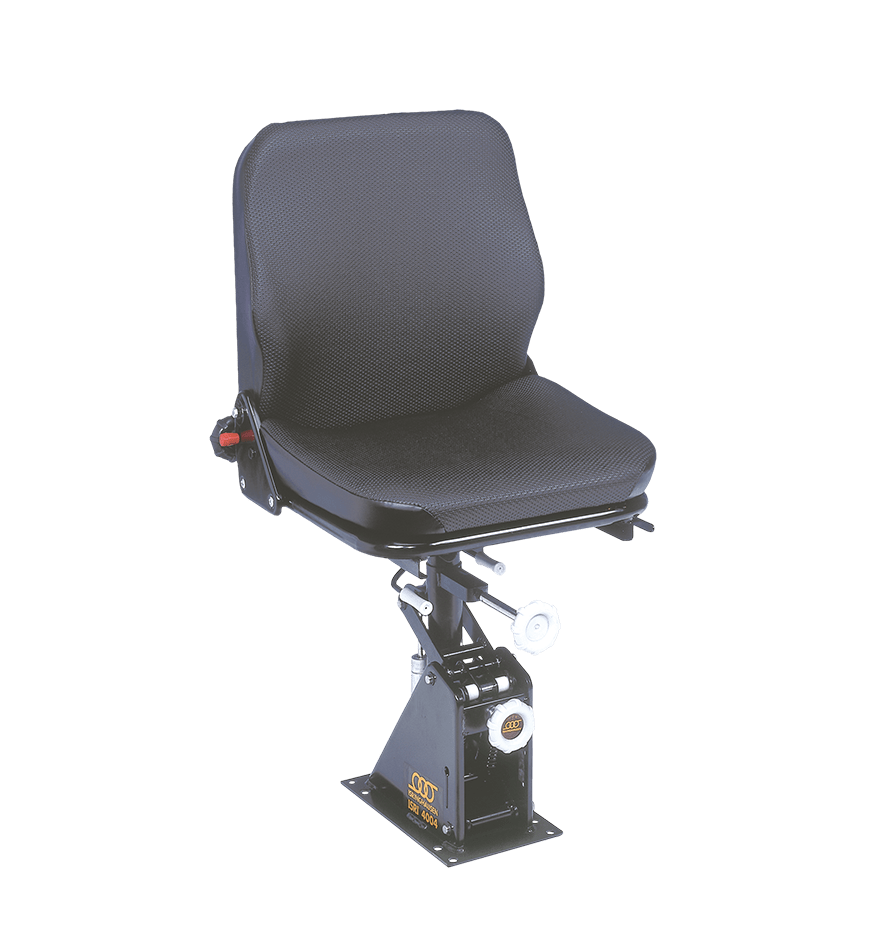

Driver Seat KFS4
Driver Seat KFS4
The Crane Driver’s Seat KFS4 features stepless height adjustment facilitated by a gas-loaded spring and an oil-hydraulic vibration absorption system with weight adjustment. Additionally, the backrest can be tilted forwards into the cushion, which can then be tilted 90° sideways for added versatility.
All functions are conveniently operated using a simple lever. Furthermore, the metal parts are safeguarded against corrosion and coated in black paint for enhanced durability.
Product description
- Technical specifications may vary depending on the configuration or application.
- Technical data is subject to change without prior notice.
Technical data
- Suspension Stroke: 80 mm
- Weight Adjustment: 50 – 130 kg
- Horizontal Adjustment: 100 mm
- Maximum Inclination of the Backrest: 20°
- Height Adjustment: 100 mm
