Crane Control Unit KST30 Swiveling
Crane Control Unit KST30 Swiveling

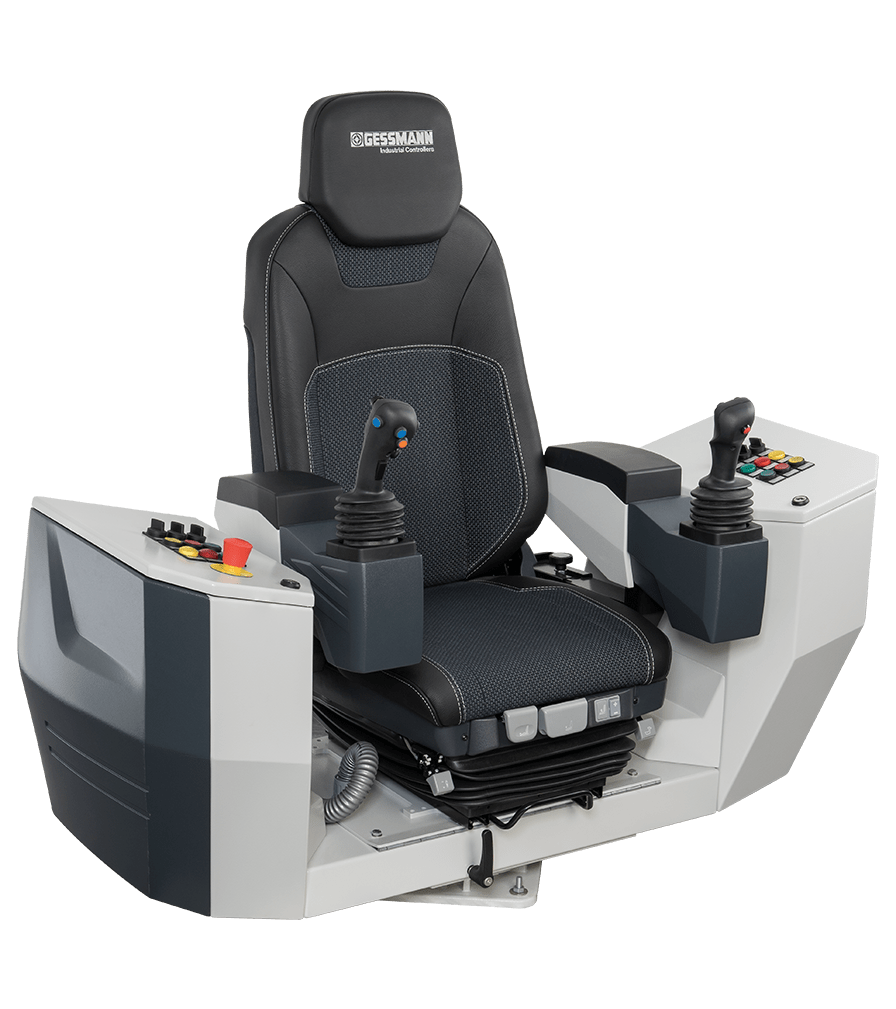

The KST30 is a swiveling crane control chair with an ergonomic design that puts comfort and usefulness first. The inner consoles, mounted to the driver’s seat, swing with the seat and can be adjusted for length, height, and inclination to accommodate individual preferences. Additionally, for console version 1, the entire control unit can be expanded with additional fixed outer consoles.
The standard version includes:
Inner consoles
Made of plastic, these consoles can be height-adjusted to accommodate joysticks of various sizes. They can also be equipped with custom command and indicating devices.
Outer consoles
Constructed from metal, the outer consoles feature foldable top covers with mechanical fixation to keep them in the open position. Internal terminal strips are easily accessible via removable side covers. Command and indicating devices can be added based on customer preferences, and special sizes and shapes of outer consoles are available upon request.
Driver’s seat
The comfortable KFS11 driver’s seat is equipped with a spring-loaded hydraulic vibration absorption system, including weight adjustment, air-permeable textile cover, armrests, and a headrest.
Cross-member with swivel base
The cover of the sheet steel cross-member, including the driver’s seat, can be folded forward for easy access to wirings, terminals, and bushings during commissioning and maintenance. The swivel base features zero-tolerance bearings, and rotation can be locked in 3° steps.
Product description
- Please note that technical details may vary depending on the configuration or application.
- Technical data is subject to change without prior notice.
Technical data
- Surface treatment: Base coat and textured varnish
- Standard color: RAL 7035 light grey in combination with RAL 7015 slate-grey
