Single-Axis Controller S9
Single-Axis Controller S9

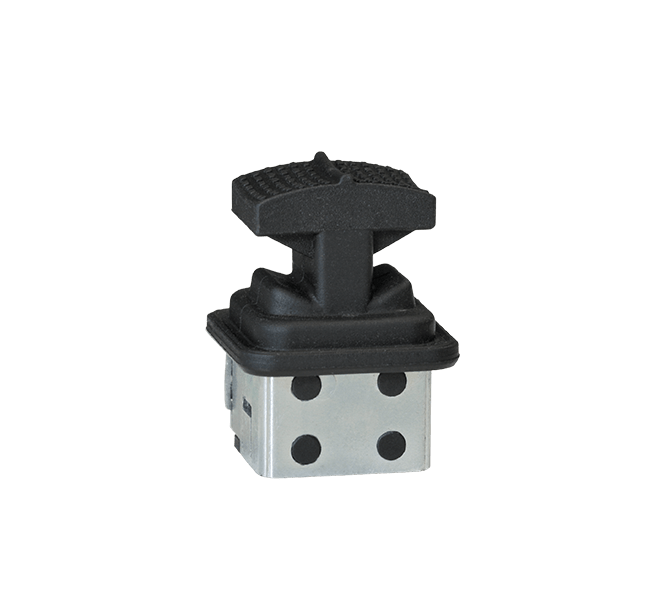

The Single-axis Controller S9 is an innovative hall sensor switching device meticulously crafted for electro-hydraulic applications. Its longevity and reliability are guaranteed by cutting-edge contactless Hall technology. Thanks to its compact size, the S9 is ideally suited for installation within our ball handles. The Single-Axis Controller S9 represents a pinnacle of simplicity and precision in control devices, offering users a streamlined interface for managing single-axis movements with utmost accuracy.
Product description
- Mechanical life: Up to 5 million operating cycles
- Degree of protection: IP67
- Contactless hall-technology
- With spring return
- Please note that technical details may vary based on configuration or application. Technical data is subject to change without prior notice.
Technical data
- Mechanical life (V22): 3 million operating cycles
- Supply voltage: 5V DC
- Operating temperature: -40°C to +85°C
- Degree of protection: Up to IP67
Voltage output
- 0.5…2.5…4.5 V (Us= 5 V)
- Characteristic: Dual or inverse dual
- SIL 2 / PL d capable
Features
- Spring return
- Deflection angle: +/- 25 degrees
