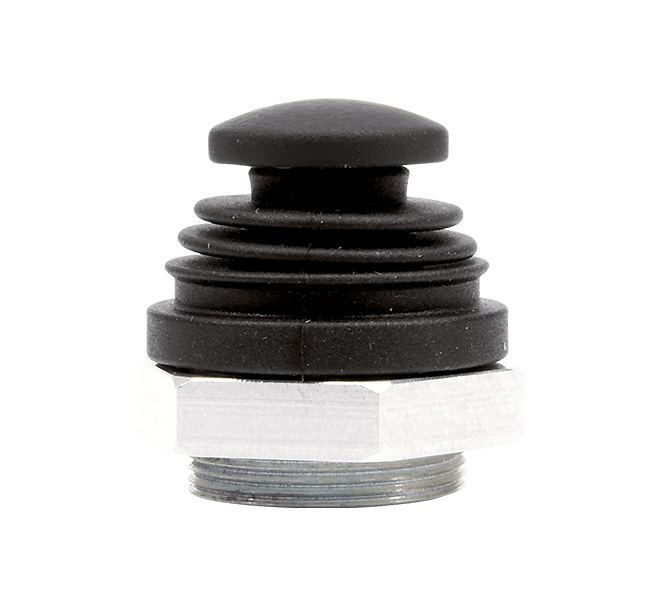

Multi-Axis Controller V21
Multi-Axis Controller V21
- Robust Mini-Joystick
- Maximum mechanical life of 5 million working cycles
- Degree of protection: Up to IP67
- Various types of actuation available
- Utilizes contactless hall-technology
- Equipped with spring return mechanism
- Encased in a metal housing
Product description
Industrial Controllers from Gessmann – proudly made in Germany.
The V21 mini-joystick is a versatile component often employed in electro-hydraulic applications, particularly well-suited for integration with our ball grips. Its longevity and reliability are guaranteed by cutting-edge contactless hall-technology.
- Technical specifications may vary depending on the configuration or application.
- Technical data is subject to change without prior notice.
Technical data
- Mechanical life (V21): 5 million operating cycles
- Operating force: 1.6 to 3.5N
- Supply voltage: 5V DC stabilized
- Operating temperature: -40°C to +85°C
- Degree of protection: IP67
- Functional safety: PLd compatible (complies with EN ISO 13849, SIL2 to DIN EN IEC 61508)
Voltage output
- 0.5…2.5…4.5 V (Us= 5 V)
- Characteristic: Dual or inverse dual
- SIL 2 / PL d capable
Features
- Spring return
- Deflection angle: Cross gate or open gate
